Types of round sewage valves

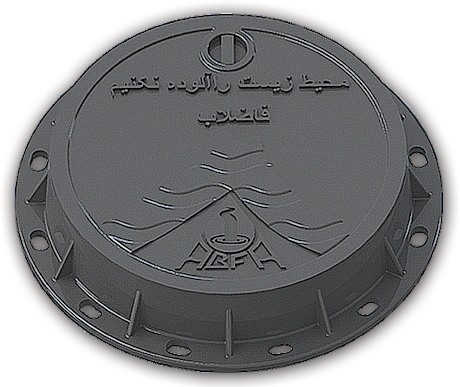

Round sewer drain valve

A simple and laced round sewage valve



This valve is used to prevent eclipse and cleaning, without the need for splitting the ground, and to provide a safe protection for the siphon and capillary science. It has four types of all polymer, polymer pig iron, polymer And composite and all cast iron and in simple and louvred types in sizes of 20 and 25 cm

Advantages and technical specifications

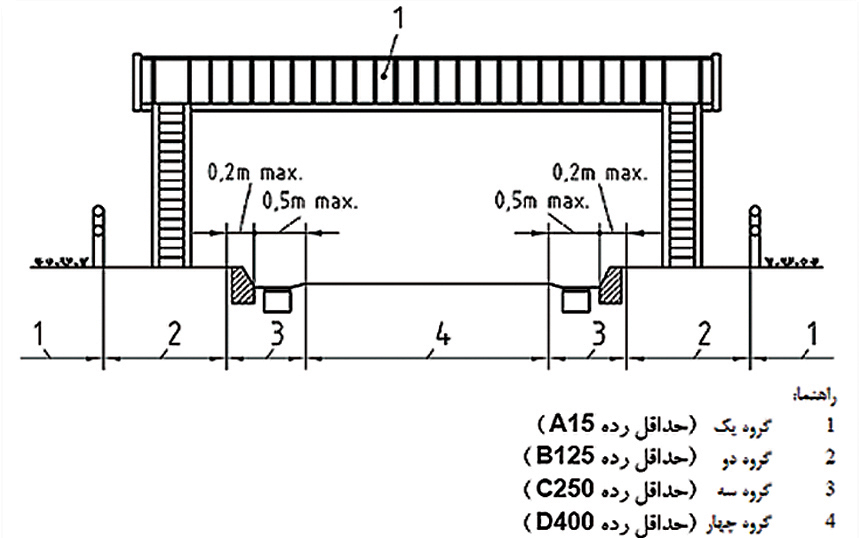

Pressure bearing in accordance with EN124 (Pressure Testing Confirmation) and MFI raw materials from valid laboratory centers

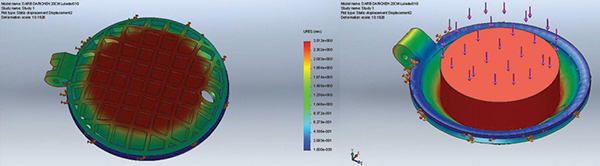

Pressure Analysis Software on Visor Valves




The design of reinforcing bridges on the inner and outer walls of the collar (zigzag) to increase the compressive strength against mechanical pressures


 The design of longitudinal and grooved grooves is sometimes suitable for fixing and full engagement with concrete



Exposure of the edges of the door on the coil to prevent soil and water from entering into the valve

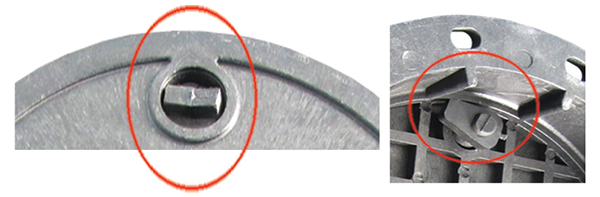

With a lock and a plastic tab on the door for ease of opening and closing the door





Design hinges in the valve that makes it easy to open and secure the valve and prevent the theft of the cast-iron doors


 Made of reinforced polypropylene materials


 Anti-UV protection to protect against sunlight
